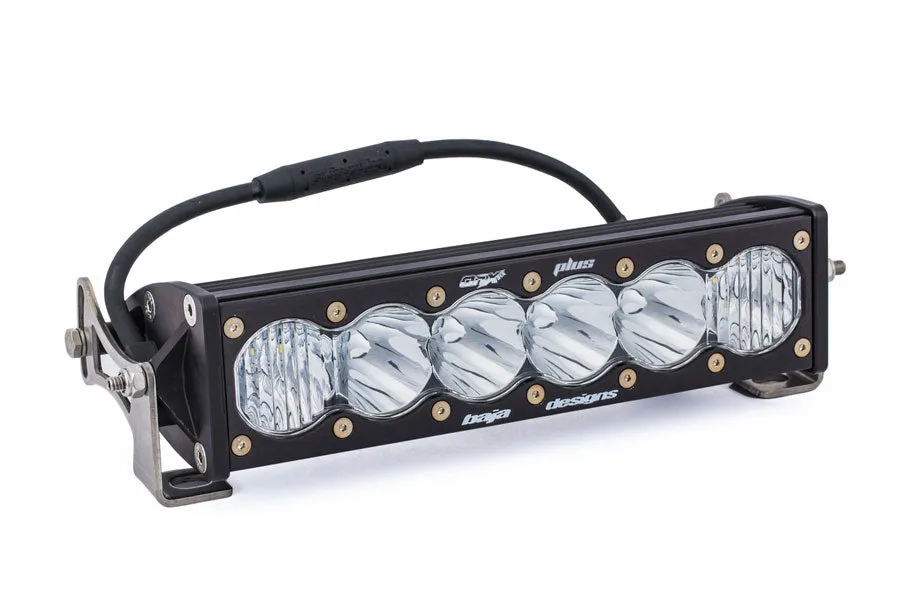

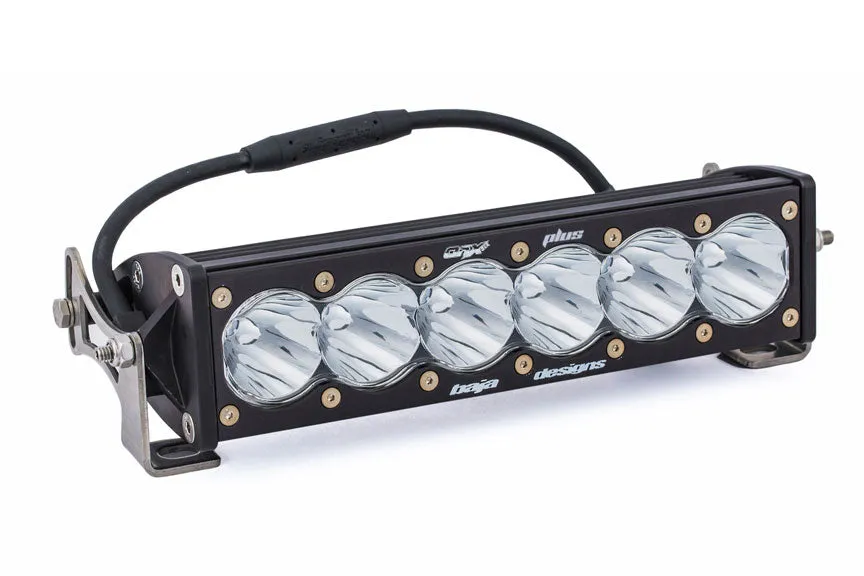

With lumens starting at, the brightest just got brighter than our previous generation. The OnX6 plus LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest-projecting LED Light Bar on the planet. We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. These light bars are completely weatherproof and have special battery management technology to save power.
In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. Attach a high-power LED light bar to the front grille, hood, or roof of your off-road vehicle and see the night in a whole new way.
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
- Please note that this light does NOT include a harness and the applicable harness to this light is 640119.
Dimensions
| Depth (in.) | 4.290 |
| Height (in.) | 2.690 |
| Length (in.) | 10 |
| Weight (lbs.) | 4.250 |
Specifications
| Amperage Rating (A) | 7.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | AS PER SELECTION
|
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 10,817 (High); 9,230 (Low) |
| Description | Straight; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lighting Modes | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lens Material | High Beam/Low Beam |
| Lighting Quantity | 6 |
| Lighting Type | LED |
| Lighting Technology | Forward Projecting |

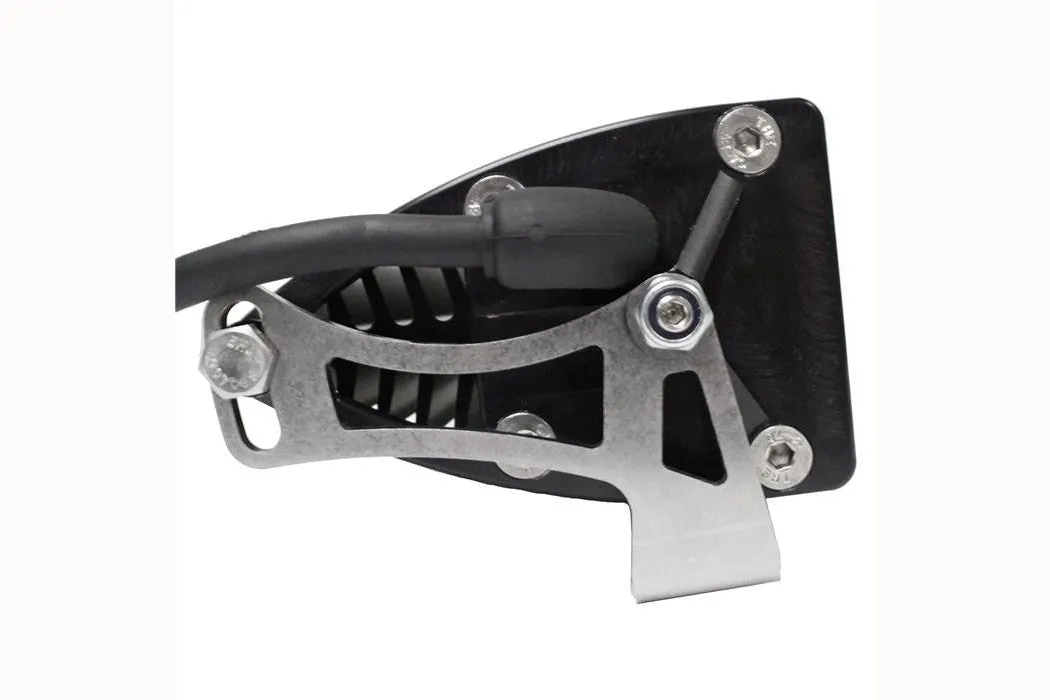

| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6 10 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 106.260 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
